OUTDOOR ARCHITECTURAL LIGHTING
FACADE LIGHTING

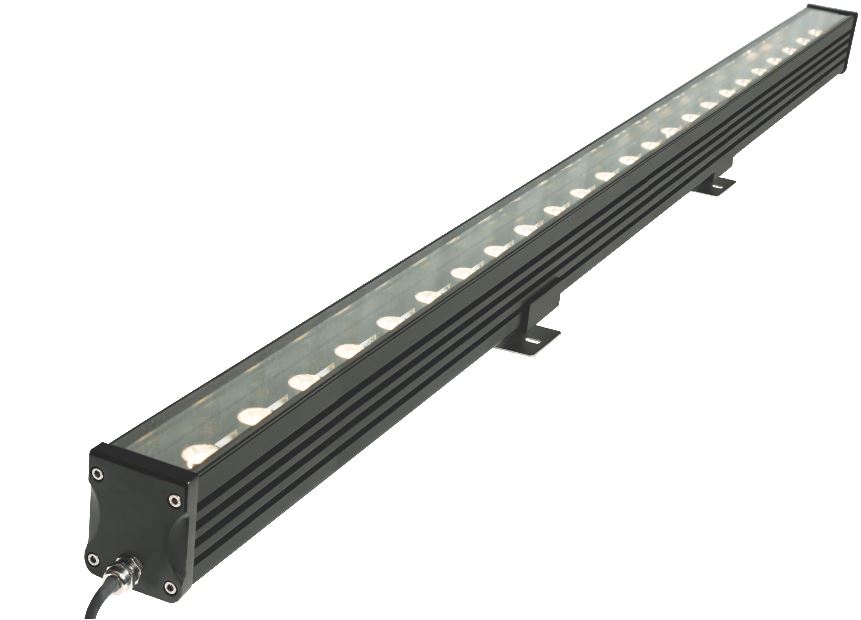

GRAZIA WHITE / SINGLE COLOUR
- IP 66, IK 08 LED Linear Wall-Washer
- Length Options : 50 / 100 / 200 / 320 / 620 / 1020 / 1220 mm
- 3W, 6W, 12W, 18W, 24W, 36W, 60W & 75W LED Options
- Multiple Wall-Wash / Flood Optics from 3° / 5° x 20° / 25° / 40° / 15° x 45°
- Housing : Extruded aluminium with Die cast aluminium End Caps
- Diffuser : 4mm Thick Toughened Glass
- Driver : Integral / Non-Integral as per project requirement
FACADE LIGHTING
GRAZIA RGBW
- IP 66, IK 08 LED Linear Wall-Washer
- Length Options : 50 / 100 / 200 / 320 / 620 / 1020 / 1220 mm
- 3W, 6W, 12W, 18W, 24W, 36W, 60W, 75W & 100W LED Options
- Multiple Wall-Wash / Flood Optics from 3° / 5° x 20° / 25° / 40° / 15° x 45°
- Housing : Extruded aluminium with Die cast aluminium End Caps
- Diffuser : 4mm Thick Toughened Glass
- Driver : Integral / Non-Integral as per project requirement
FACADE LIGHTING

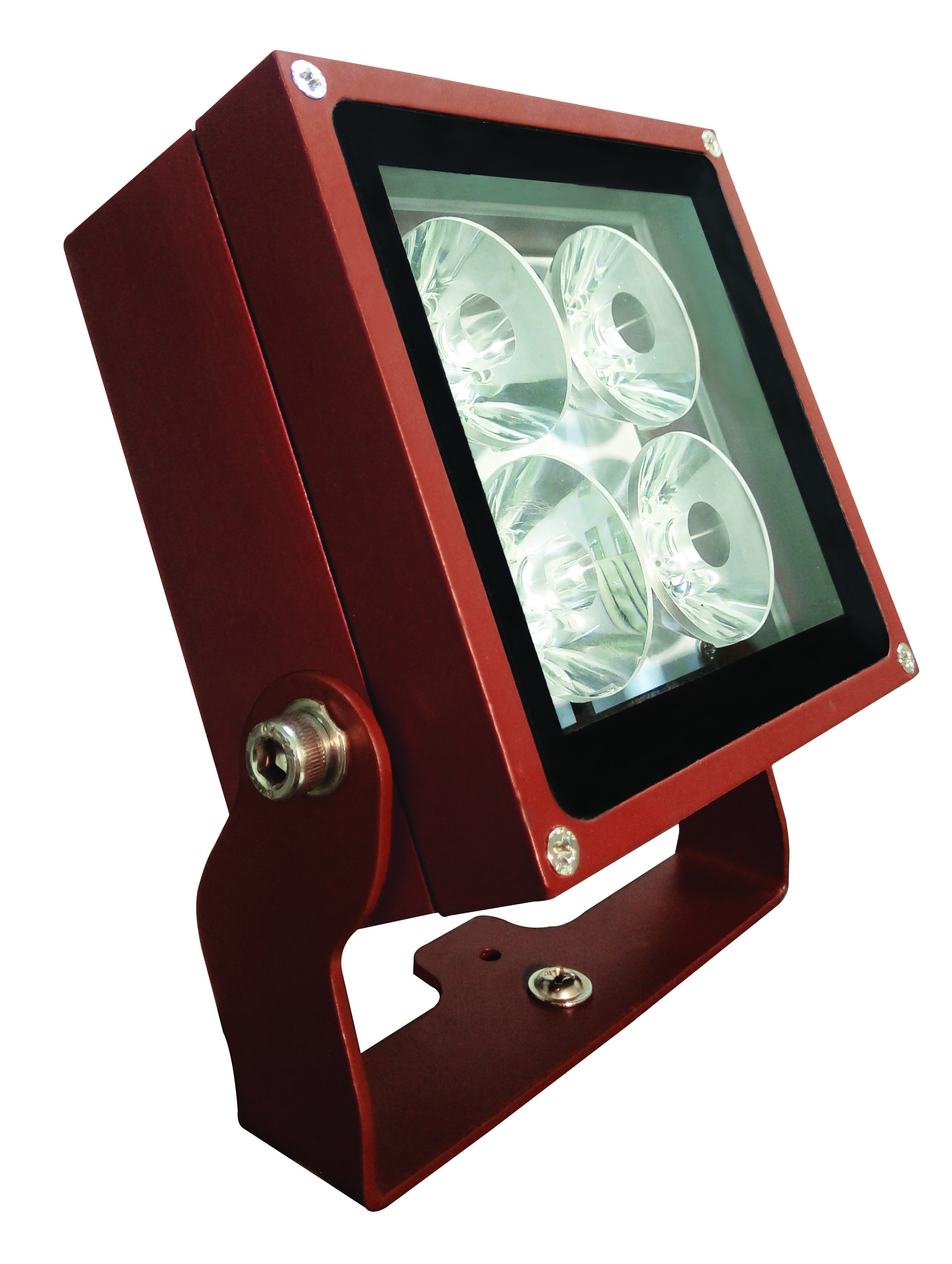

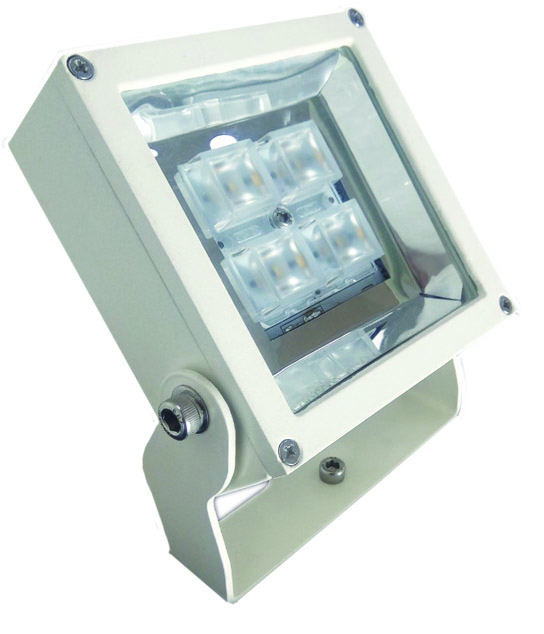

QUBIK 4 LED
- Robust, Sleek Design with Excellent Heat Dissipation
- 5W, 10W & 20W LED Options
- Housing : High Pressure Die Cast Aluminium Alloy, Polyester resin powder coated
- Diffuser : 3mm Thick Extra Clear Toughened Glass
- Driver : Integral with additional 10 KV Surge Protection Device
- Optics : SYMM 10° / 15° / 30° / 42° / 60° / 15° x 45° / 15° x 90° : Forward ASYMM
- All Stainless Steel - AISI 304 Grade Hardware
- Silicon Moulded Gaskets for IP66 Rating
FACADE LIGHTING

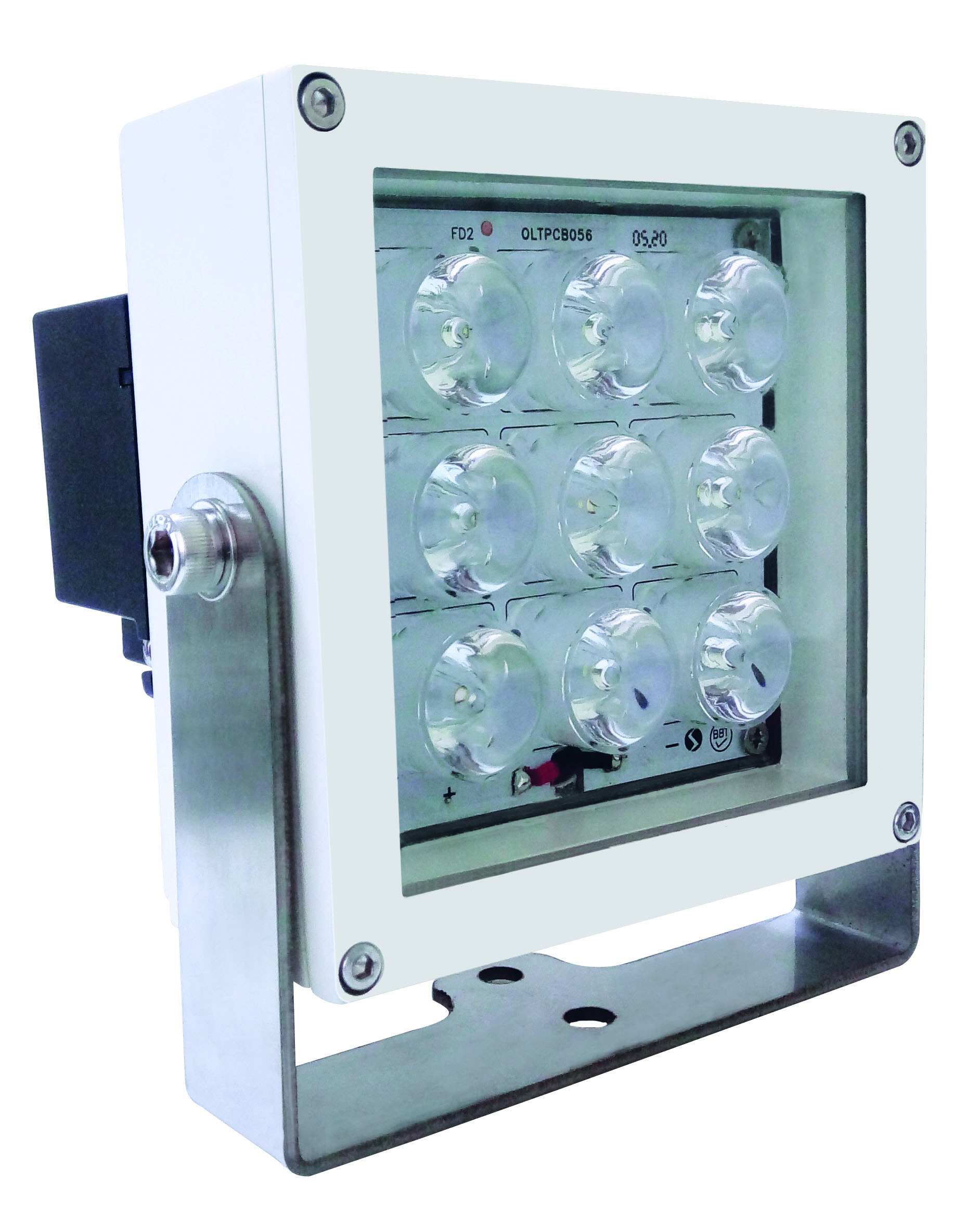

QUBIK 9 LED
- Robust, Sleek Design with Excellent Heat Dissipation
- 10W & 20W LED Options
- Housing : High Pressure Die Cast Aluminium Alloy, Polyester resin powder coated
- Diffuser : 3mm Thick Extra Clear Toughened Glass
- Driver : Integral with additional 10 KV Surge Protection Device
- Optics : SYMM 10° / 25° / 15° x 45°
- All Stainless Steel - AISI 304 Grade Hardware
- Silicon Moulded Gaskets for IP66 Rating
FACADE LIGHTING

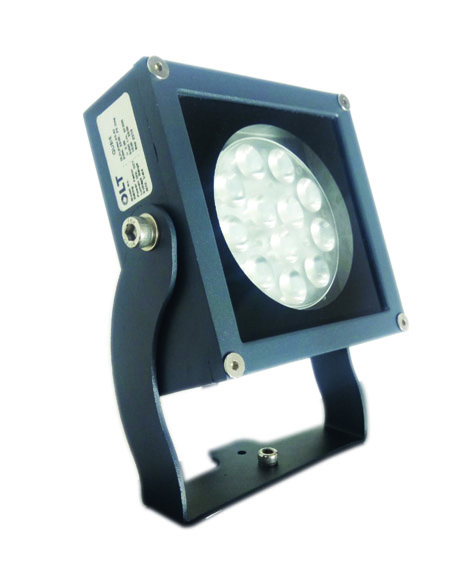

QUBIK 12 LED
- Robust, Sleek Design with Excellent Heat Dissipation
- 14W & 28W LED Options
- Housing : High Pressure Die Cast Aluminium Alloy, Polyester resin powder coated
- Diffuser : 3mm Thick Extra Clear Toughened Glass
- Driver : Integral with additional 10 KV Surge Protection Device
- Optics : SYMM 15° / 30° / 40°
- All Stainless Steel - AISI 304 Grade Hardware
- Silicon Moulded Gaskets for IP66 Rating
FACADE LIGHTING

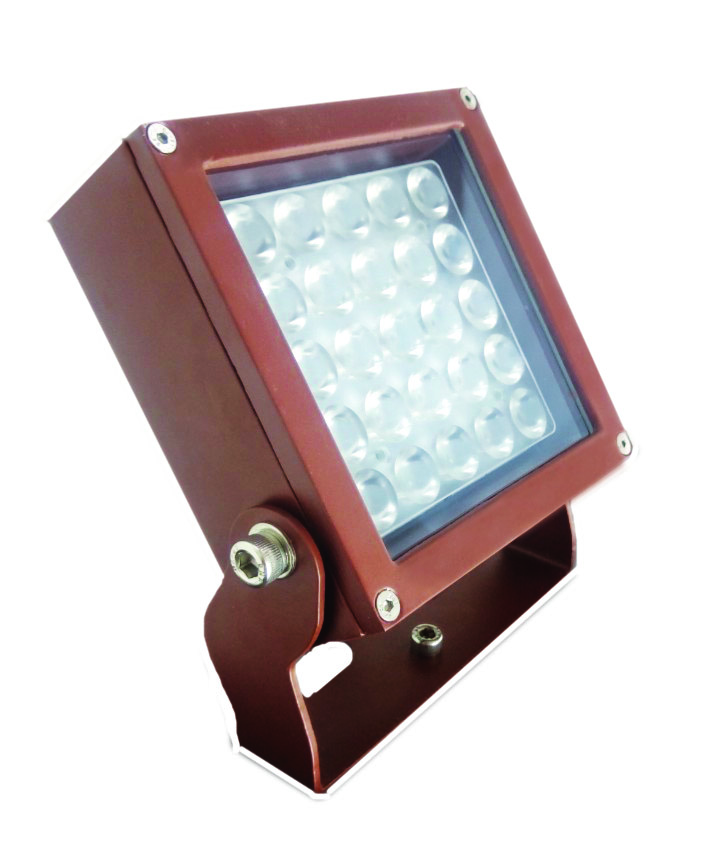

QUBIK 25 LED
- Robust, Sleek Design with Excellent Heat Dissipation
- 25W & 40W LED Options
- Housing : High Pressure Die Cast Aluminium Alloy, Polyester resin powder coated
- Diffuser : 3mm Thick Extra Clear Toughened Glass
- Driver : Integral with additional 10 KV Surge Protection Device
- Optics : SYMM 15° / 30° / 45°
- All Stainless Steel - AISI 304 Grade Hardware
- Silicon Moulded Gaskets for IP66 Rating
FACADE LIGHTING
QUBIK ULTRA NARROW BEAM
- Robust, Sleek Design with Excellent Heat Dissipation
- 10W & 20W LED Options
- Housing : High Pressure Die Cast Aluminium Alloy, Polyester resin powder coated
- Diffuser : 6mm Thick Extra Clear Toughened Glass
- Driver : Integral with additional 10 KV Surge Protection Device
- Optics : SYMM 3° / 5° x 20°
- All Stainless Steel - AISI 304 Grade Hardware
- Silicon Moulded Gaskets for IP66 Rating
FACADE LIGHTING

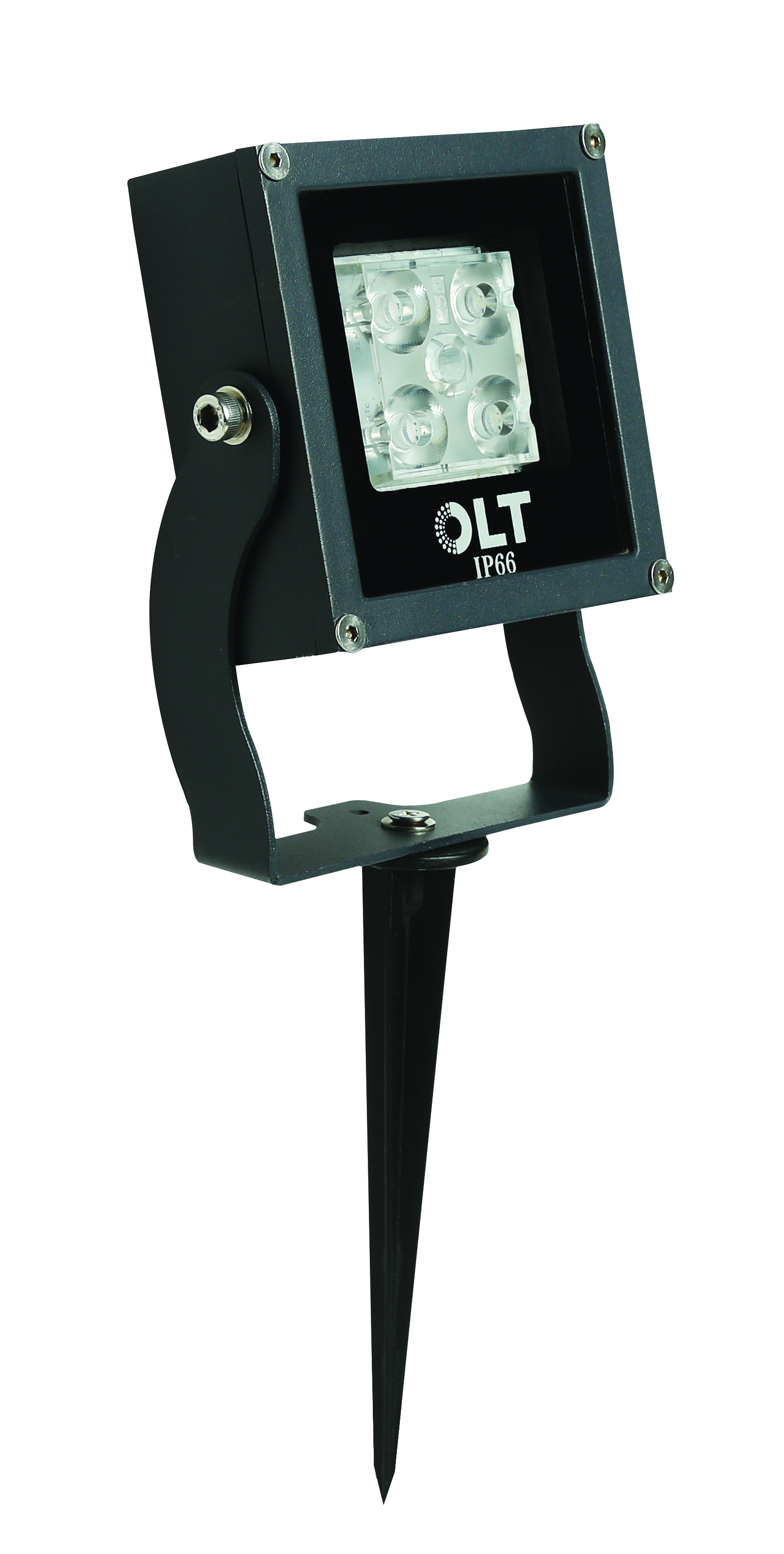

QUBIK SPIKE
- Robust, Sleek Design with Excellent Heat Dissipation
- 5W, 10W & 20W LED Options
- Housing : High Pressure Die Cast Aluminium Alloy, Polyester resin powder coated
- Diffuser : 3mm Thick Extra Clear Toughened Glass
- Driver : Integral with additional 10 KV Surge Protection Device
- Optics : SYMM 15° / 30° / 45° / 60° / 15° x 45° : Forward ASYMM
- All Stainless Steel - AISI 304 Grade Hardware
- Silicon Moulded Gaskets for IP66 Rating
- Spike For Ground Fixing : Fibre Glass Nylon / Die cast aluminium
FACADE LIGHTING

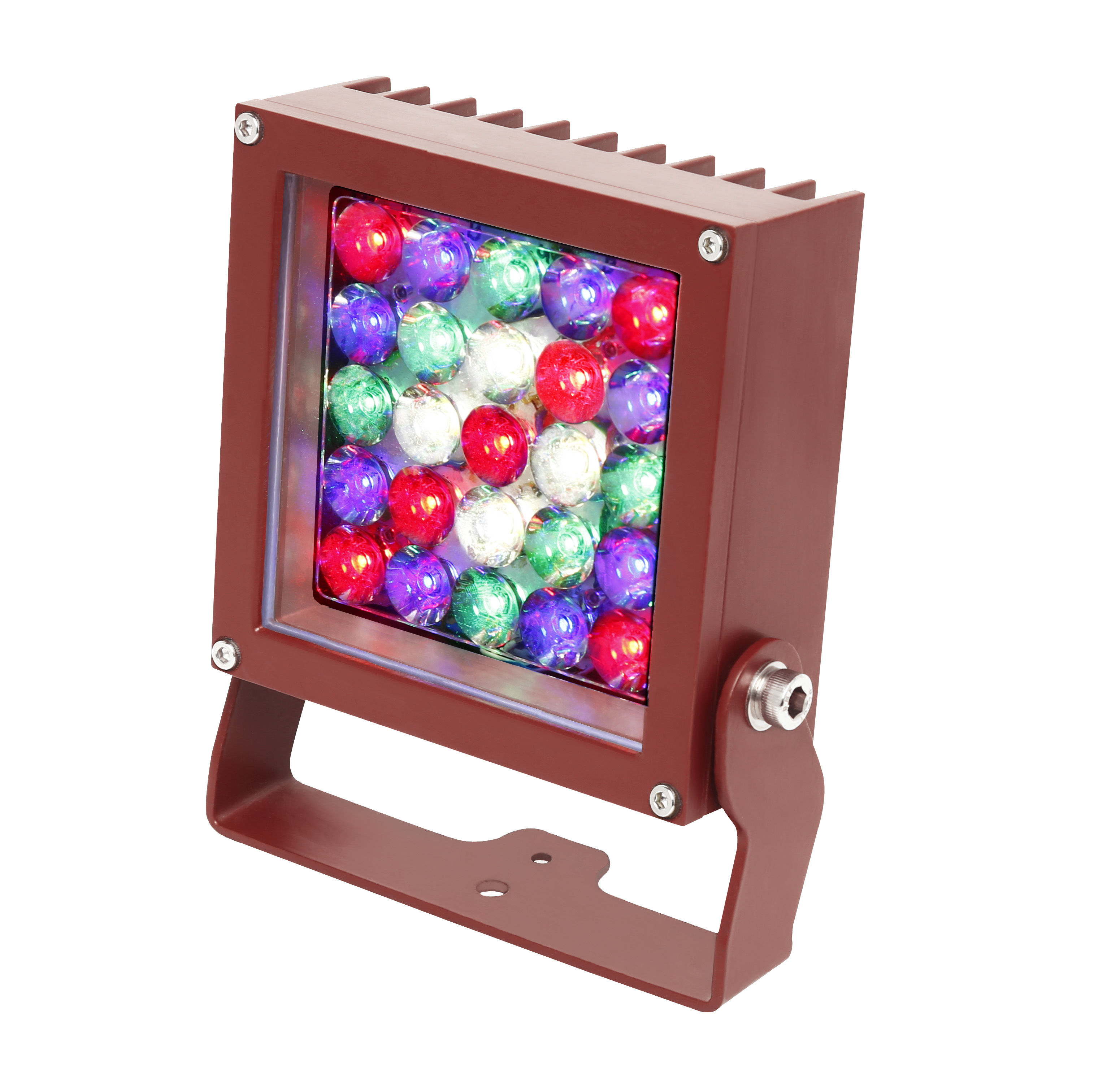

QUBIK RGBW
- Robust, Sleek Design with Excellent Heat Dissipation
- Housing : High Pressure Die Cast Aluminium Alloy, Polyester resin powder coated
- Diffuser : 3mm Thick Extra Clear Toughened Glass
- Driver : Integral with additional 10 KV Surge Protection Device
- LED : High Power SMD R / G / B / W / A / WW Single Colour LED's with individual PMMA Lenses, 25W / 36W / 45W
- Optics : SYMM 10° / 15° / 30° / 45°
- All Stainless Steel - AISI 304 Grade Hardware
- Silicon Moulded Gaskets for IP66 Rating
FACADE LIGHTING
QUBIK RGBW FULL COLOUR
- Robust, Sleek Design with Excellent Heat Dissipation
- Housing : High Pressure Die Cast Aluminium Alloy, Polyester resin powder coated
- Diffuser : 3mm Thick Extra Clear Toughened Glass
- Driver : Integral with additional 10 KV Surge Protection Device
- LED : High Power SMD 4-in-1 RGBW Full Colour LED's with 4-in-1 PMMA Lenses, 20W / 36W / 45W
- Optics : SYMM 25° / 50° / 90°
- All Stainless Steel - AISI 304 Grade Hardware
- Silicon Moulded Gaskets for IP66 Rating
FACADE LIGHTING

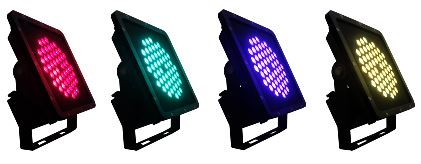

AEROFLOOD QUADRA RGBW
- Robust, Sleek Design with Excellent Heat Dissipation
- Housing : High Pressure Die Cast Aluminium Alloy, Polyester resin powder coated
- Diffuser : 4mm Thick Extra Clear Toughened Glass
- Driver : Integral with additional 10 KV Surge Protection Device
- LED : High Power SMD RGB / RGBW Full Colour LED's, 100W / 150W / 200W
- Optics : SYMM 25° / 50° / 90°
- All Stainless Steel - AISI 304 Grade Hardware
- Silicon Moulded Gaskets for IP66 Rating
INGROUND LIGHTING

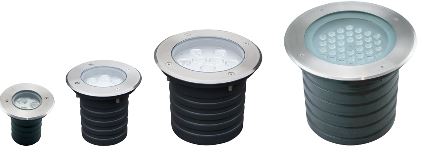

OMNIFLOOR IP67 INGROUND UPLIGHTS
- Housing : Aluminium and Stainless Steel AISI 304 / 316L
- Diffuser : Toughened Glass
- Driver : Inbuilt
- LED : High Power SMD, 3W / 6W / 12W / 22W / 36W
- Optics : SYMM 15° / 25° / 40°
- All Stainless Steel - AISI 304 Grade Hardware
- Silicon Moulded Gaskets for IP67 Rating
INGROUND LIGHTING

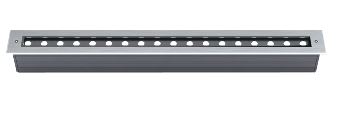

LINEAR IP67 INGROUND WALL-WASHER
- Housing : Extruded Aluminium and Stainless Steel AISI 304 / 316L
- Diffuser : Toughened Glass
- Driver : Inbuilt
- LED : High Power SMD, 3W / 6W / 12W / 22W / 36W
- Optics : SYMM 15° / 25° / 40° / 15° x 45°
- All Stainless Steel - AISI 304 Grade Hardware
- Silicon Moulded Gaskets for IP67 Rating
